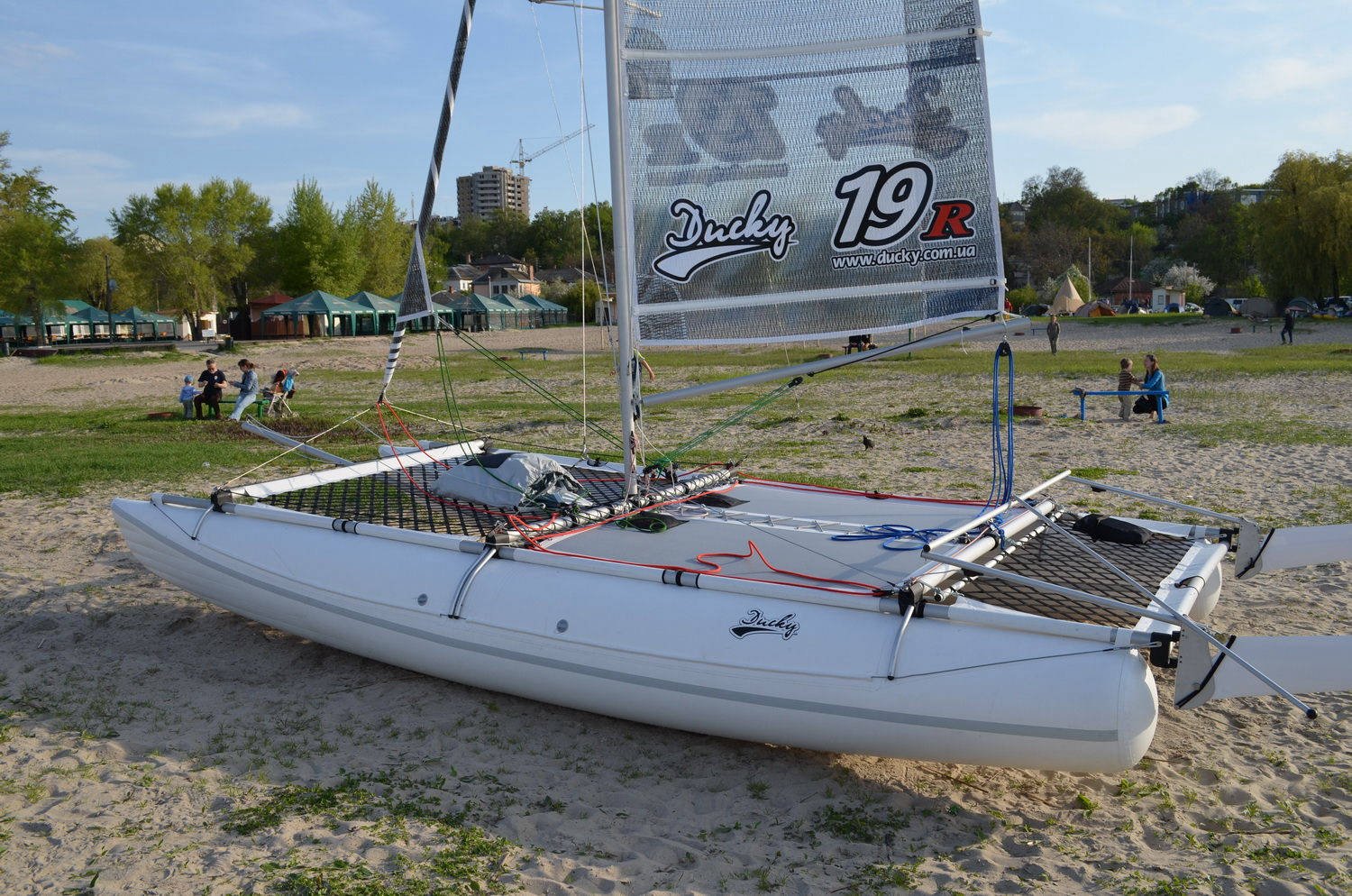

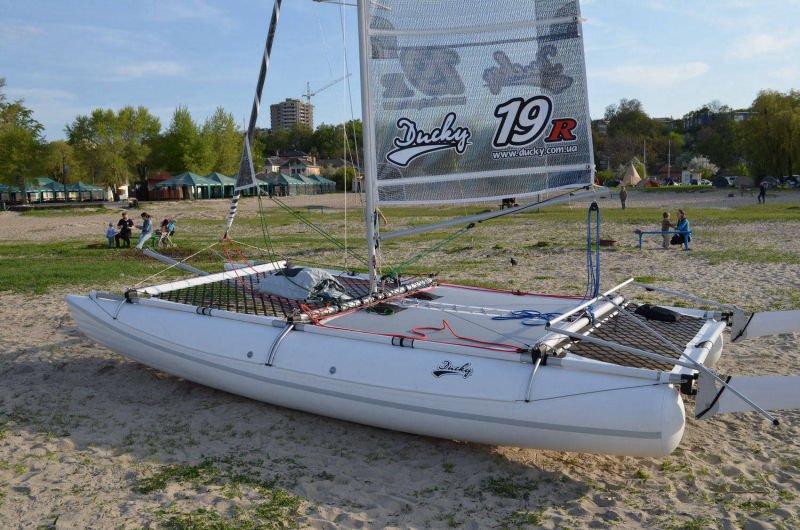

Ducky 19 Inflatable Catamaran

Ducky 19 / 19R

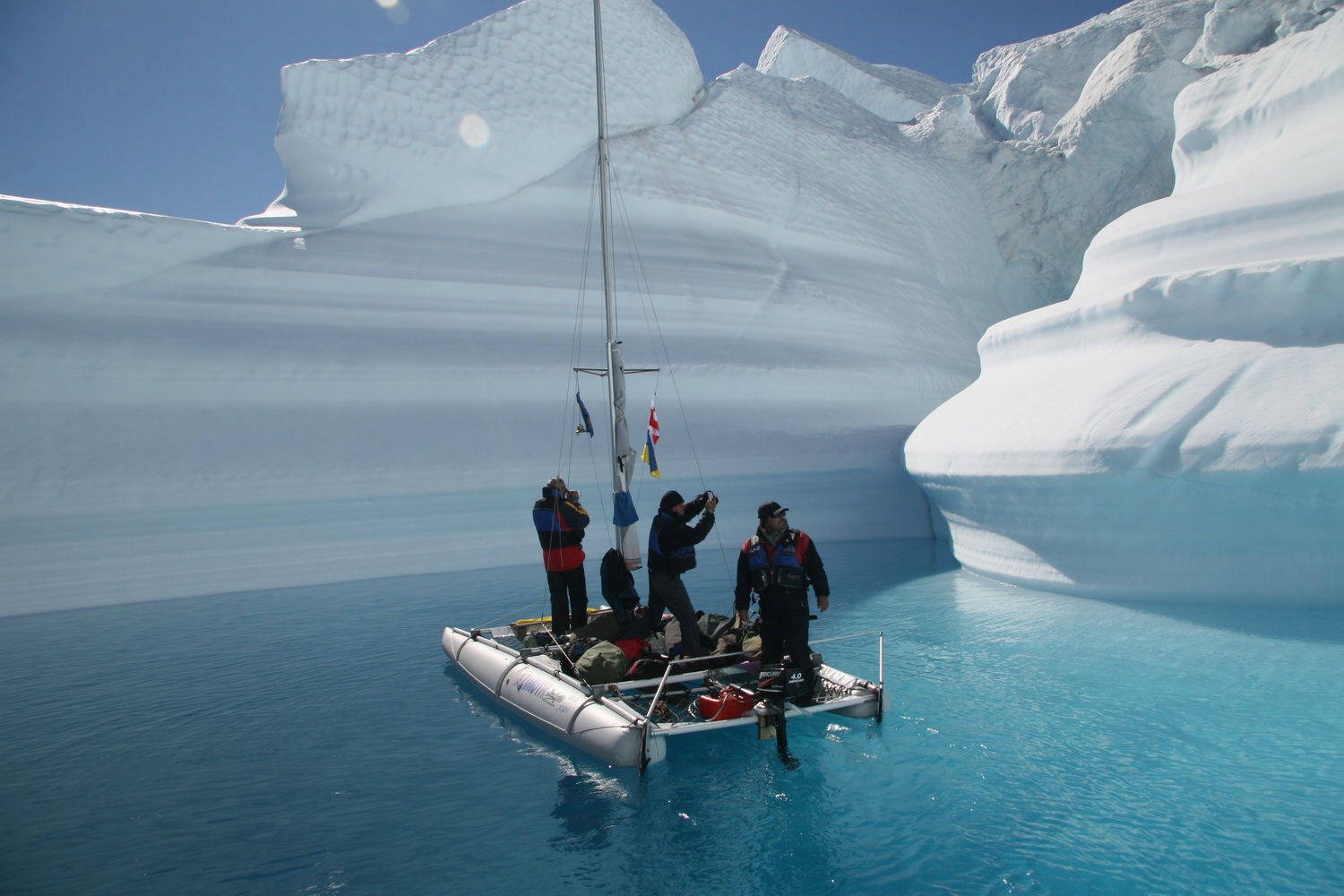

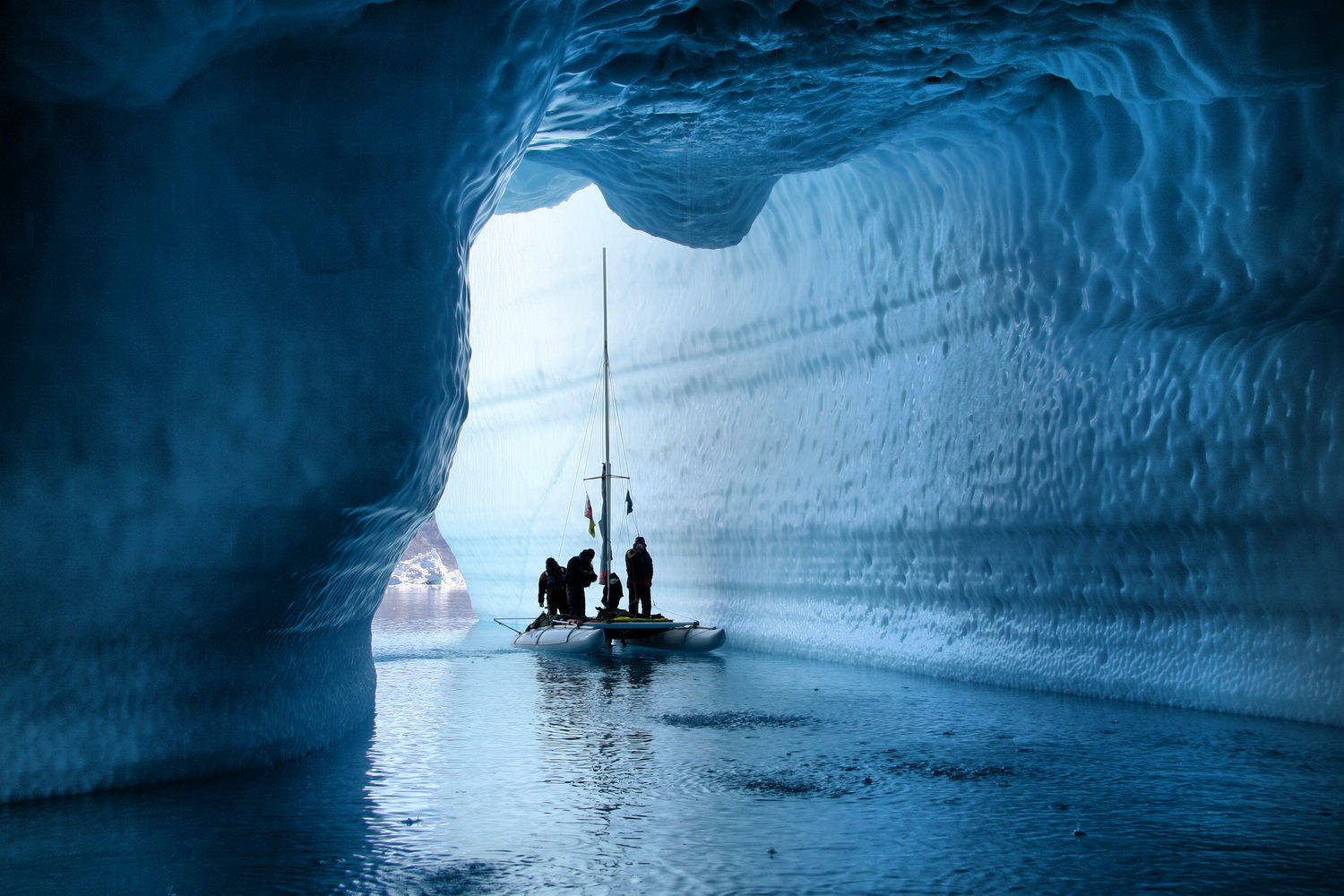

The flagship Travel catamaran perfect for adventure and competitions

The Ducky 19 has a large load capacity, a spacious trampoline and luggage nets to comfortably accommodate a crew of 2-5 people with equipment.  An expanded list of additional options is created for maximum comfort, during both extreme expeditions and family trips at southern and northern latitudes.

Also, this model may be relevant if you do not need to assemble-disassemble frequently. Although the assembly of the catamaran is not difficult, it is not rational to use it as a “weekend boat”. For these purposes, there are more suitable models – Ducky 16, Ducky 15 or Ducky 14S.

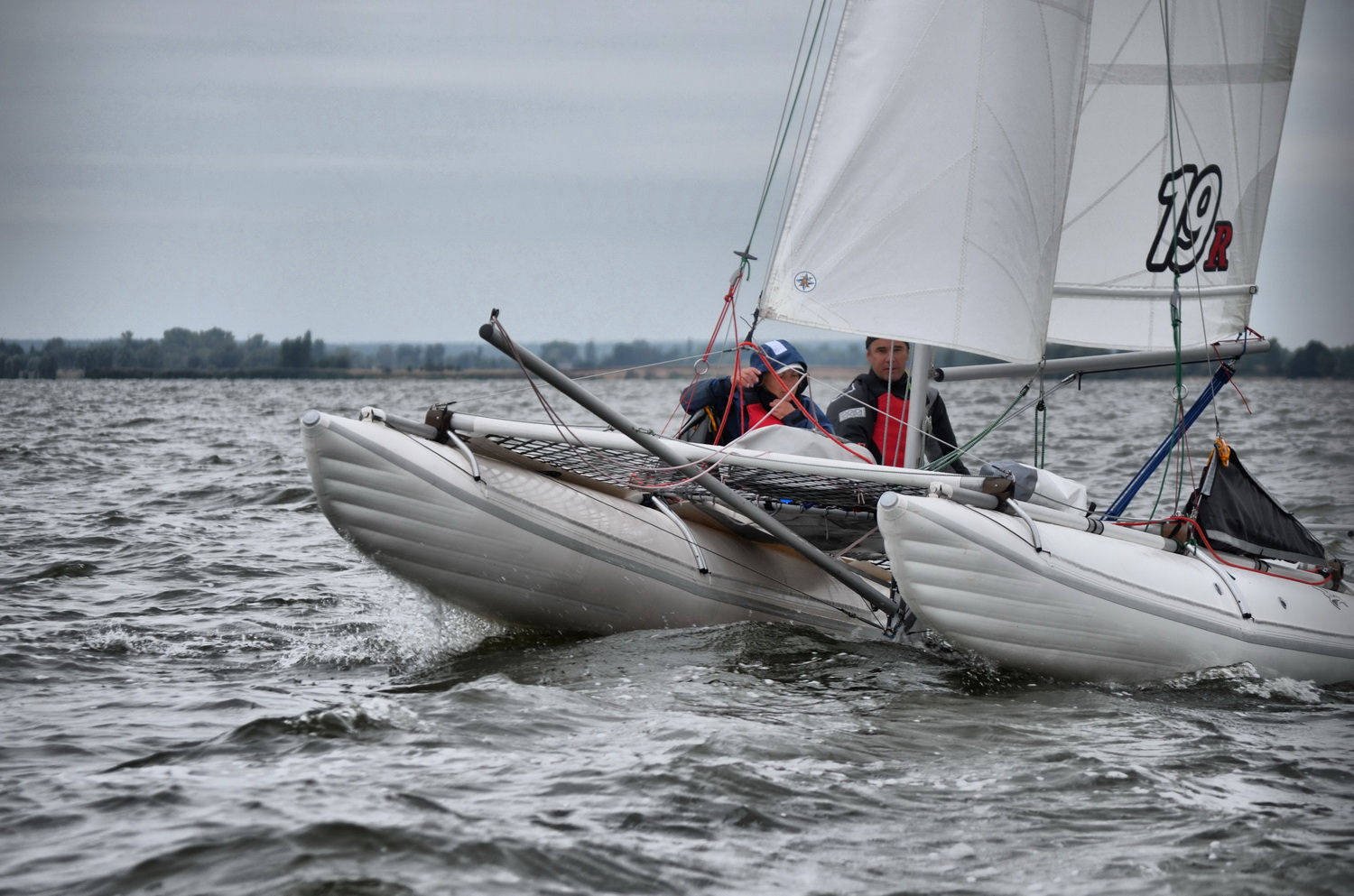

For sports enthusiasts, a racing version of the model is developed – Ducky 19R. It differs from the standard one by increased sail area and the presence of a main traveler.  When needed, you can easily convert the standard version to the racing one and vice versa.

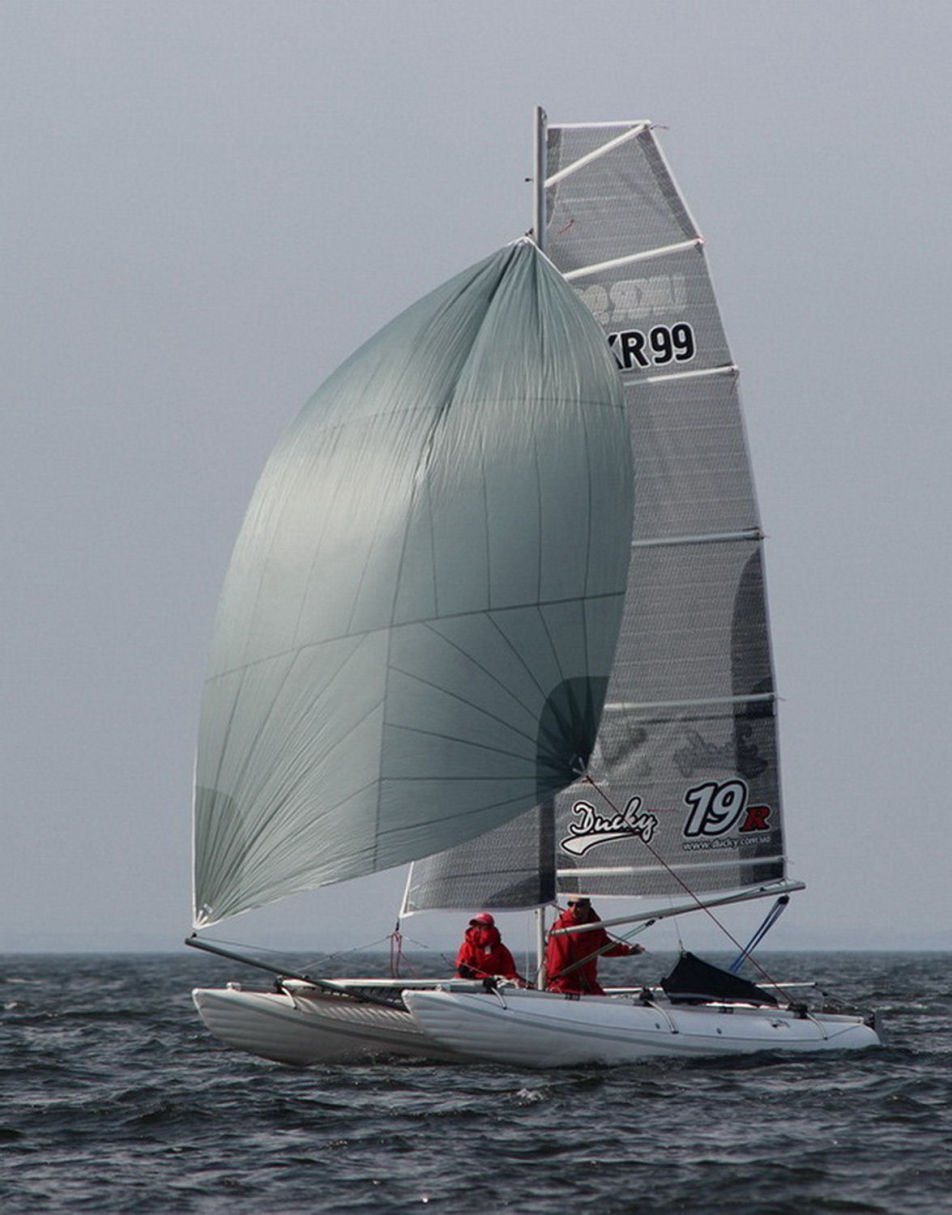

Additionally, an asymmetric spinnaker – gennaker can be installed on a catamaran. It is an effective sail for downwind courses.

Also outboard engines with a power up to 4.0 hp can be installed on this catamaran via an additional motor bracket attached to the aft beam.

Technical Data

TYPE VALUE
Length, m5.94
Width, m2.87
Height, m8.0
Length / Width of front trampoline, m2.0 / 2.25
Length / Width of main trampoline, m2.0 / 2.25
Length / Width of back trampoline, m0.9 / 2.25
Diameter of floats, m0.62
Jib, sq.m (Ducky 19 / 19R)3.0 / 4.2
Main sail, sq.m (Ducky 19 / 19R)10.0 / 11.3
Gennaker, sq.m18
Carrying capacity, kg525
Crew, pers.1-6
Weight, kg115
Dimensions in packed condition, m4 Packs
Pack no. 12.15 x 0.3 x 0.25
Pack no. 22.15 x 0.35 x 0.25
Pack no. 30.9 x 0.6 x 0.4
Pack no. 40.6 x 0.4 x 0.3
Time of Assembly / Disassembly, min90 / 40
Sail materialDacron / Maylar
Recommended engine power, hp (under 25kg)4.0
Boat design category (Directive 94/25/EC, 2003/44/EC and 2013/53/EU)C

Design

  • FRAME AND TRAMPOLINE - The frame has a unique resilient design. At peak loads, pipes can rotate in joint units. This feature allows to withstand heavy alternating loads without damage and makes the frame very reliable and durable.  The minimum number of frame elements provides low weight and quick assembly.  The frame material is lightweight, durable and corrosion resistant aluminum alloy.  All aluminum parts are anodized or powder coated for additional corrosion protection in seawater.  The main trampoline is 2.0 x 2.25 m in size, spacious and comfortable.  There are a cargo nets where you can place people or luggage.  The shrouds form a guard railing of main trampoline. This is additional safety and a comfortable support for the back when sitting.  The side pockets are convenient for keeping a lot of things, including oars.  Trampoline material is durable PVC net that allows water to pass through and prevents the puddles formation

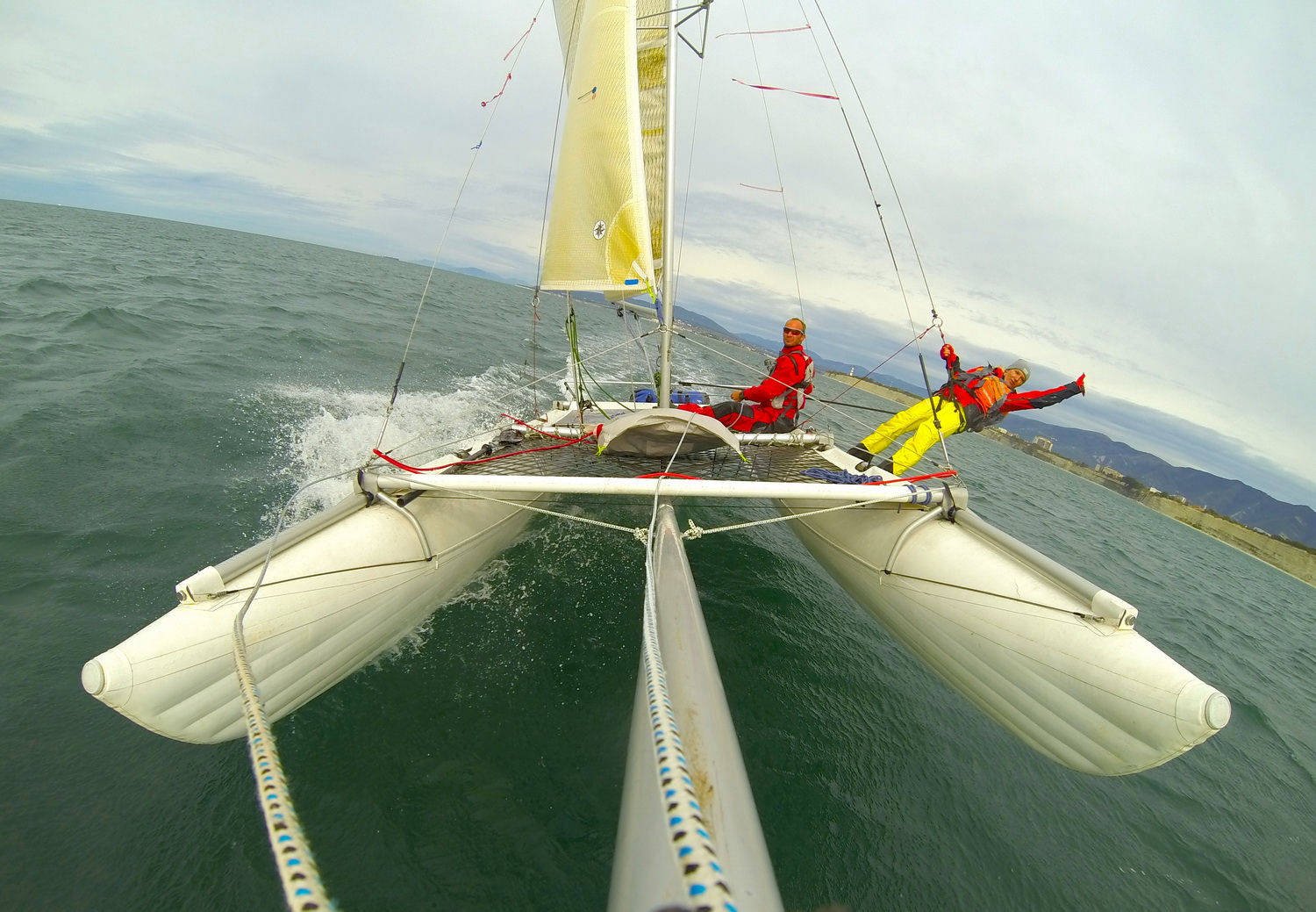

  • FLOATS - Highly efficient float shape provides minimum resistance and maximum speed.   Sharp stem makes wave travel smooth with minimal splashes.  Each float has two sealed sections that provide added safety.  Fast and convenient fastening to the frame with straps.  The floats material is a durable boat PVC fabric with 1000 g/sq.m weighing.  Extra bottom reinforcement for harsh environments usage
  • CENTERBOARD - Centrally located.  Necessary area, good elongation and profile ensure effective movement of the catamaran against the wind.  It has an automatic system of protection against damage when running aground or into obstacle.  Regulated degree of immersion into water of the centerboard makes it possible to move against the wind even in shallow water.  Сenterboard material is glass composite
  • RUDDERS - Two rudders provide control in all running modes and additional safety if one of them fails.  They have an automatic system of protection against damage when running aground or into obstacle.  Tiller extension allows to more effectively place your weight for balancing of catamaran heeling.  Rudder blade material is glass composite
  • MAINSAIL - There are mainsail and jib.  Large elongation, shape and profile of sails provide a high efficiency.  An additional sail for downwind courses is the gennaker. It doubles the total sails area.  In the racing version, the sails have an increased area, there is no boom.     Main traveler is used for effective mainsail setting.  Sail material is Dacron or Mylar
  • MAST - Mast Spreader significantly increases the strength of mast.  The mast is rotatable, that improves the efficiency of the sail.  It is held in working position by shrouds and stay.   The mast consists of four sections.  The mast Float protects against the full capsize
  • ACCESSORIES - Catamarans are equipped with blocks, sheets, stoppers and other parts from leading manufacturers.

ADDITIONAL OPTIONS

Ducky 13 Outboard Motor Bracket

OUTBOARD MOTOR BRACKET

Motor bracket is designed for mounting of outboard motor with extended deadwood (long shaft). Recommended engine power - 4.0 hp

Ducky 13 Tiller Extension

TILLER EXTENSION

The tiller extension is designed to control the tiller from a distance. This is a useful option that allows more effective heeling balance and maintains accurate catamaran trim (loading of stern or bow).

Ducky 13 Mast Float

MAST FLOAT

The mast float is an inflatable tank that prevents the catamaran from turning the mast upside down. The float will keep the catamaran on a "side position" and will facilitate the righting of the catamaran to an even keel, in case of capsizing. It will not allow the mast to sink below the surface and prevents damage. The mast float is streamlined. If necessary, it is easily mounted and dismantled without the use of tools; fixators included.

Ducky 13 Hull Protection

BOTTOM HULL PROTECTION

An additional strip of fabric is glued to the bottom.  It is recommended for severe operating conditions, such as: a shore with sharp stones, mollusks, and other cutting and piercing elements.

Ducky 13 Parking Cover

PARKING COVER

Parking cover protects the catamaran from the sun, rain, dust and dirt.  Essential if you're planning to leave your catamaran assembled and exposed to the elements for any period of time.

Ducky 13 Sail Number

SAIL NUMBER

The number is made from a self-adhesive dacron.  The standard symbol height is 300 mm.  The price is calculated on a cost per character basis with or without a sticky back.   Drawing of individual logos is also possible depending on the requirement.

Ducky 15 Gennaker

GENNAKER

Gennaker is an asymmetric spinnaker for downwind running including beam reach. A catamaran with gennaker significantly increases the speed, and in a fresh wind it can reach the hydroplaning mode. Recommended for advanced users.

Ducky 15 Side Pockets

SIDE POCKETS

Side pockets are designed to store small items, clothes and other things. Standard oars can be kept there also. The pockets are made of micro-net. They are attached to the cable-stay of starboard and port side, forming a kind of cockpit that additionally protects from wind and splashes.

Ducky 15 Sail Feeder

SAIL FEEDER

There is useful option that significantly simplifies mainsail hoisting. It directs the boltrope into the mast track and eliminates sail jamming.

DUCKY CATAMARANS

For leisure, sport and travel.  No matter what your priority is: family vacations, fun, sports, education or an extreme expedition, you will find that Ducky catamarans are a quality affordable solution.

Our diverse product range is designed to best meet your needs.  The range is light weight, quick to assemble, highly mobile, easy to learn and critically - easy to store.
